Atlantis Icon R1 Regulator

Stock Code:
10180
Price:
$329.99 (Incl GST)
or 6 weekly, interest-free payments of $55.00 Laybuy What's this?
Stock Level:
In Stock
Add to Favourites
Make an Enquiry

Description

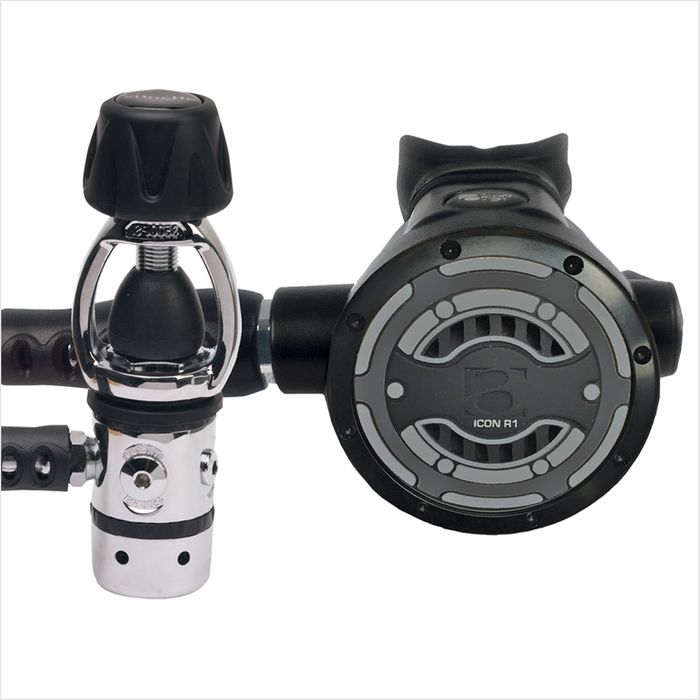

ATLANTIS ICON R1
Piston design. Ideal entry level regulator.
1st Stage:
Unbalanced piston 135-145 PSI output.
Maximum working pressure 3500 PSI (232 bar)
Four 3/8-24 UNF-2B intermediate pressure ports.
Two 7/16-20 UNF-2B high pressure ports.
Chromium plated brass body.
Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
Available in Yoke or DIN.

2nd Stage:
Non-Adjustable 2nd stage.
Downstream demand valve with external air intake adjustment.
Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
150 PSI maximum intermediate pressure.
1.2 to 1.4 CIW (column inches of water) inhalation effort.
1.1 CIW (column inches of water) exhalation effort.
30+SCGM (air supply:3,000 PSI).

Factory ready for Nitrox under 40%.
