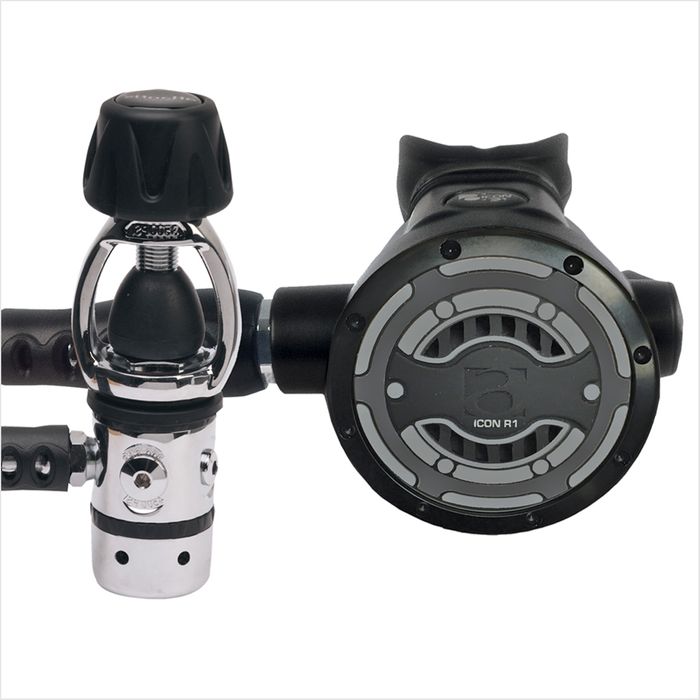

Atlantis Icon R1 2nd Stage Only

Stock Code:
10501-1
Price:
$129.99 (Incl GST)
Stock Level:
In Stock
Add to Favourites
Make an Enquiry

Description

Description
Proven design – Proven as a tough and reliable Hire/Resort regulator which is ideal for the recreational diver.

1st Stage:

Unbalanced piston 135-145 PSI output.
Maximum working pressure 3500 PSI (232 bar)
Four 3/8-24 UNF-2B intermediate pressure ports.
two 7/16-20 UNF-2B high pressure ports.
Chromium plated brass body.
Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
Available in Yoke or DIN.
2nd Stage:

Non-Adjustable 2nd stage.
Downstream demand valve with external air intake adjustment.
Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
150 PSI maximum intermediate pressure.
1.2 to 1.4 CIW (column inches of water) inhalation effort.
1.1 CIW (column inches of water) exhalation effort.
30+SCGM (air supply:3,000 PSI).
